Regular price $3,450.00
Regular price $4,250.00 Sale price $3,450.00
Sale Sold out
Tax included.
Gas Injection

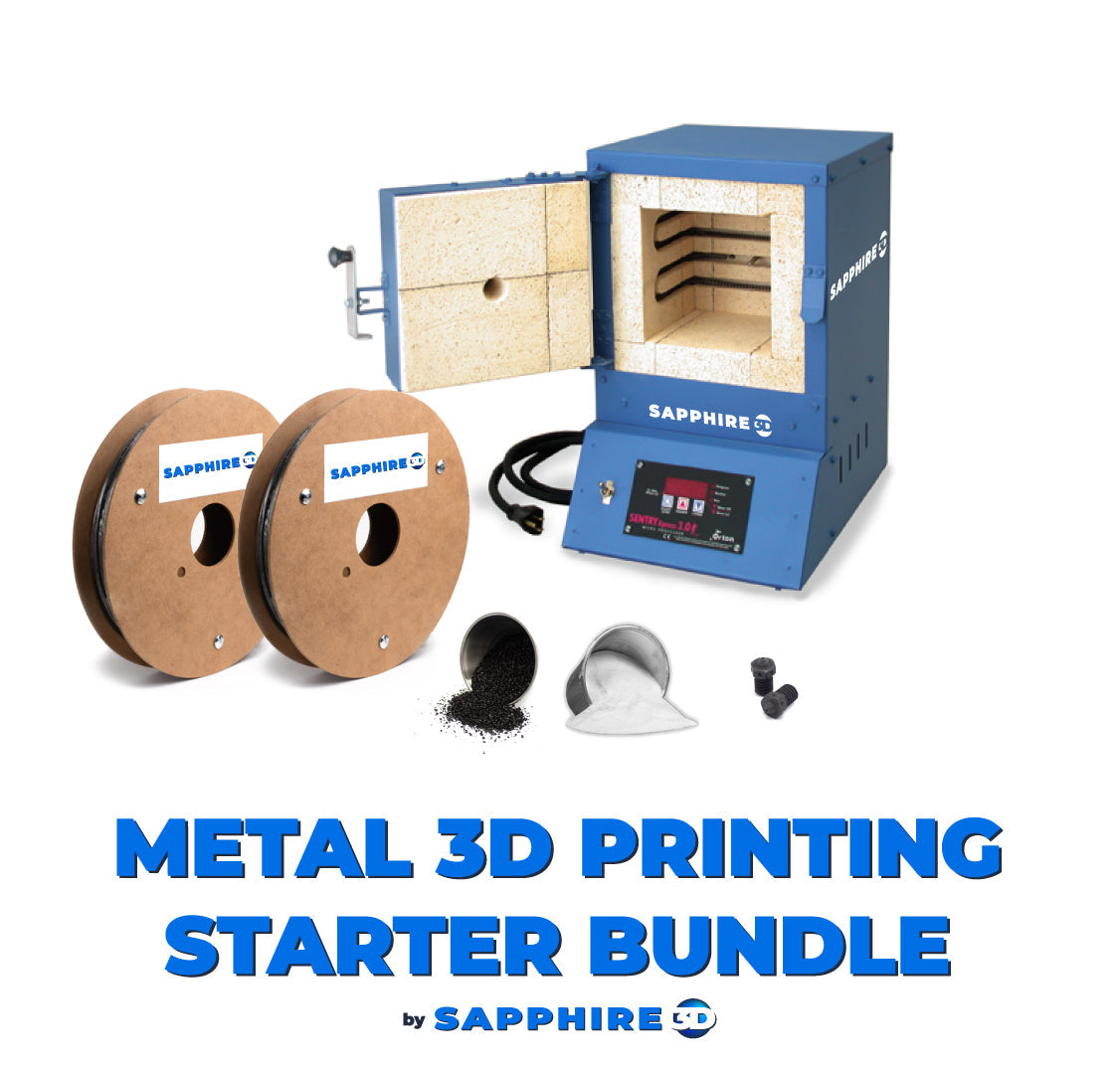

Introducing the Metal 3D Starter Bundle By Sapphire3D! This Bundle allows users to sinter printed metal and ceramic objects. The Sapphire3D kiln is designed to reach a maximum temperature of 2500F/1370C which is specific to the sintering of metal and ceramic parts.

This system allows users to sinter a number of The Virtual Foundry™ (TVF) 3D printed materials including Ceramics, Bronze, Copper, 316L Stainless Steel, 17-4PH Stainless Steel, Inconel 718, and more in development!

How it works:

3D Print, Pack, Sinter, Metal! Users "pack" the printed part in our Sapphire3D sintering refractory, cover with our specific 3D carbon, and load the part in the Kiln. Select the parameters for sintering, click start your parts will soon turn to functional metal objects! Follow the sintering instructions included in the bundle to turn your printed parts into metal. This bundle allows for your choice of inert gas or open environment sintering. This bundle includes everything necessary to make metal parts.

Inert Gas not included. This bundle does not include a 3d printer. Proper ventilation is required while operating kiln. Kilns operate at a very high temperature, please use with extreme caution.


What's included in the bundle:

1x  Sapphire3D Metal & Ceramic Specific STARTER Kiln with Manual Gas Injection

1 year of Sapphire3D Printing & Sintering Support

1x  .5kg roll of TVF Bronze Filamet

1x  .5kg roll of TVF Copper Filamet

1x  1kg Sapphire3D Sintering Refractory

1x  1kg Sapphire3D Sintering Carbon

1x  Package of Ceramic Paper

1x  Sapphire3D Bell Sintering Crucible


- 120v, Ph 1, 60Hz, 15A , 1800w

- Single Phase

- Max. Temperature: ~2500F / ~1370C

- Plug: Nema 5-15R

- CE : Yes, has CE Designation.

- TUV tested to CSA and UL Standard 499

Sintering Area/ Chamber Volume:

0.13 cubic ft. / 3.7L

6" Width x 6" Depth x 6.25" Height /

152mm Width x 152mm Depth x 159mm Height

Kiln Outer Dimensions:

11.0" W x 15.0" D x 18.0" H

279mm W x 381mm D x 457mm H

Shipping Size: 22" x 17" x 19"

Shipping Weight:  Approx 60.0lbs

This Bundle Ships 6-10 weeks Via UPS/FedEx
